I know some people have a hard time locating this windows. So why not add them here.
Reimo has them. In Sweden you can order by campingvaruhuset.
Photo by J. Keto and his Peugeot Boxer window installation.
 |
| Side window, right or left to Peugeot Boxer 2007- |
Price: 189.00€
Order number: 31620
Master Article Number: M31619
First of all these comes in two version.
2kw: 326mm / 12.8"
5kw: 376mm / 14.8"
So the 2 kW is a bit smaller and a replica of Webasto.
The 5 kW is a replica of Ebersprächer.
One problem with these chinese heaters are the sound of the fuel pump.. This is how to get a more silent pump.
"Does not become completely silent, but much quieter. Then as others have said pipe insulation and hang it freely." - Jocke S.
"I changed the pump and the new one is barely audible." - Bengt Åke L.
Also found some video saying it was bearly noticible, the difference that its.

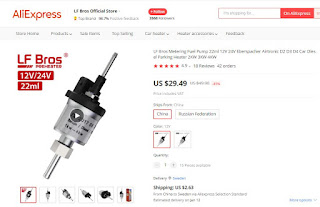

On Aliexpress: High Quality Durable Car Air Diesel Parking Oil Fuel Pump
 |
| The fuel pump pictured has it's own fuel filter in it, which is clean-able. (Nuts can be unscrewed for cleaning) |
Other alternatives
Washing up sponges around it and then put it inside a small bottle.
Zippy clips (cable ties) around the ends of the pump
Chinese diesel heater noisy fuel pump fix
Channel: TOMMY'S VAN LIFE
https://www.youtube.com/watch?v=YxalU1klYoE
 |

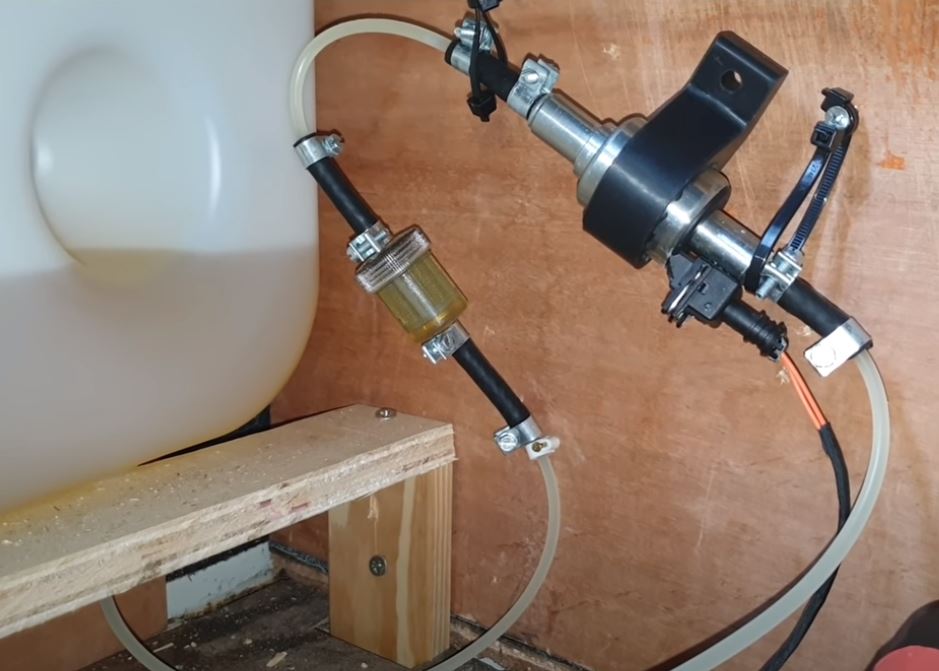

| Cable ties holding the pump freely, picture from Tommy's Van Life. |

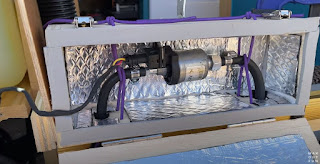

Or like use a Silent enclosure, this picture is from Max Out Fun. He has swithch to a soft line, instead of the hard one. No more ticking?
I think He's using this fuel pump:
"When the pump is horizontal a big bubble forms on the 'top' of the piston resulting in metal-on-metal wear. This will cause the pump to fail or mis-dose. You want the pump to be filled with diesel, which provides the lubrication. The inner angles of the pump best allow the cavitation bubbles to 'escape' when placed at 15 - 30 degrees. Other than that, this is a brilliant setup!" - stevenh
-------------------
Youtube channel Robert Miller: https://www.youtube.com/watch?v=Fnf9L3Jbujo
Diesel pump in a plastic box, egg shaped insulation. All placed under the trailer.
------------------ ------------------
Intake side of fuel pump ok with softer fuel line
Delivery side (after fuel pipe): only use hard nylon tube
Put the fuel filter and fuel pump as close to the fuel tank as you can
Keep the suction height 500 mm or less and keep the delivery 1m or less.
----------------- ----------------------
Finding fuel lines that doesnt dry...
SAE J1527 / ISO 7840 approved fuel hoses for boats work well. The hose should preferably have a sticky / oily surface.
Best of all, however, are DIN73379-E3 hoses, Viton hose with Kevlar reinforcement. However, it costs 5 times more than a standard NBR hose
The white nylon harder one also seems good.
Comparison between 2kW vs 5kW
 |
| Compilation from H. Kommers Password to
Gain Access to Settings On the LCD controller Black type controller, to access settings menu press top 2 buttons together. Blue type
controller, to access settings meny press OK and left arrow together. The known
passwords to access the settings are 1688 and 9009 (blue controller) or 9977. Settings for 2kW heater, https://www.youtube.com/watch?v=x5J80THMOsY When the lock is shown on the display: enter code 1688 2kW Fan settings -------------- Best way to prime it ------------------ Self priming: Manually pull the diesel so you can see the diesel coming to the fuel pump. Suck it. (To stop uneccesary wear on the piston running without diesel / lubrication. 16.00 https://www.youtube.com/watch?v=TGFDFZ6r1dI "It takes about 1 full prime process to travel about a meter so it depends how far from your tank your heater is. The best idea is to take the fuel line off of the bottom of the heater and put it into a clean container. Then prime the line until all the bubbles are out of the line and the fuel is coming out. The re attach the fuel line and press go" - Van Life Uk ------------------- Black smoke or White smoke ? ----------------------- White smoke is probably indicator that you are too lean, you are not running enough fuel and you have too much air coming in. Black smoke, flame running to rich, too much fuel, not enough air. --------------------- Remote control Battery: A27 (12V) ---------------------- "A27 are for the controller without display, it's a 12V battery. But the range on that one are crazy... I can sit outside my house, and start the heater in my basement" The red remote (with display) uses 2 AAA batteries but has worse range. |
--------------------- ---------------
https://www.ebay.co.uk/itm/Air-diesel-Heater-LCD-Remote-5KW-12V-For-SUV-MotorHomes-Car-Caravan-4-H-Black/284147905676?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2648&fbclid=IwAR3Kt19yzqOdUy8l4WY_ezp1x3IUOTU_u1GVLDw_wn9-xGe1Mto2B4ojSJQ
Tank is 10 liter.
 |
| Foto B. B. Gunnarsson |
------------------------ ---------------
Kerosene does not have lubricants which diesel does, kerosene can damage the fuel metering pump.
From Youtube channel: Foresty Forest
8.30 Silent fuel pump to chinese diesel heater
James design
https://www.youtube.com/watch?v=C0A1TUG2wQ4
This wasnt up to the task when it got really cold.
From video: https://www.youtube.com/watch?v=CKyR_GqSkkM
---------------- Can you mount it on the side? -----
Yes they are design to run on side.
Just make sure the glow plug is top side.
It's important that the glowplug doesnt see more than 8V. It burns out pretty quickly if it sees more than 8volt for a longer time. Source: https://www.youtube.com/watch?v=BhNXlYpglDE
--------------------- ----------------
Manual:
https://www.butlertechnik.com/downloads/Eberspacher_Airtronic_D2_Technical_Manual.pdf?fbclid=IwAR0GaFs8a2QbMy47hM9-aD3BtXw7D30-pLPIUFB9-XO8yYO3hcHXZm3_9PA
watch John McK 47 YouTube videos before installing
Mkt bra John McK 47, följande är gjort av honom. 90 graders kopparsvängar som han skurit i för att kunna klämma fast, tror även han har 25 mm rakt rör till avgasröret.
MEN, jag har också hört att man inte får ha 90 graders böjar , utan avgasröret ska gå rakt 6 tum ut.
Outlet size:
2kw: 60mm inside diameter på rör
5 & 8 kW: 75mm inside diameter
https://youtu.be/mKN2isuA7Gc
 |
| Här syns outlet diameter bla. |
https://www.amazon.com/Eberspacher-Webasto-bracket-190246-292100190246/dp/B0068M8HMW?tag=tracie-20&fbclid=IwAR0GaFs8a2QbMy47hM9-aD3BtXw7D30-pLPIUFB9-XO8yYO3hcHXZm3_9PA
Diesel heater van installation
Photo Jack Rason
Photo: Stephen Reeve
"I fixed a plate to the floor first I have put the pump under the van aswell"
------------------ This is not all in one but I like it the setup! -------------
"I used a 6 gallon portable boat tank from bass pro. And a 100ah lithium battery. After this pic I made the box smaller where the actual heater is as u can see in the first pic. Make sure you have a shut off switch to cut all power between heater and battery as they are known for the fan to mysteriously start on own and the display never shuts off killing the battery. This setup should allow the heater to run on low for at least 4 days without any additional power or fuel." - John Bonzey
 |
| Photo of Diesel air heater installation in trailer: John Bonzey |
"7x16. I’ve had feedback that guys with trailer larger than 20ft with same 5k heater and it’s more thank enough." - John Bonzey
Here some nice picture of this beutiful build by J. Bonzey
 |
| 2" insulation in this trailer. |
 |
| Air inake |
-------------------------- B. Nelson installation ----------------
This is also a nice installtion! Photo by B. Nelson
 |
| Air intake |
------------------- Mount it outside like J. Jubert done -----------
They need some kind of outside box.
They're not waterproof
Photo and installation by J. Jubert
-------------- This is the version I bought ------------

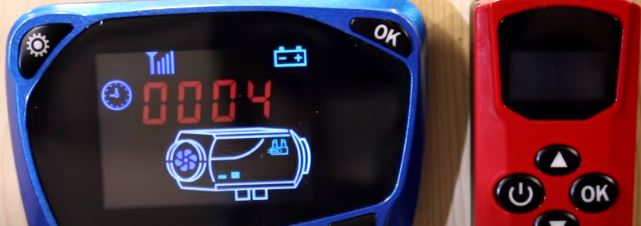

You either get the "blue digit" LCD, or the "red digit" LCD.
The former cannot be tuned, the latter can. So I got the "red digit" LCD of course.
"You can replace the it to a red digit one" - R. Burn
"It has a long lasting display, sleeps when out of use, and offers a real time burner sensor temp read out. All controllers have a learning curve to suffer through, but this is one of the good ones." - T. Poustie
 |
| Green Led display often refered as three button controller. |
"The display lasts so well because it is not an LCD, but discrete LEDs directed to the front "screen" via a carefully crafted physical masking system." - R. Jones
 |

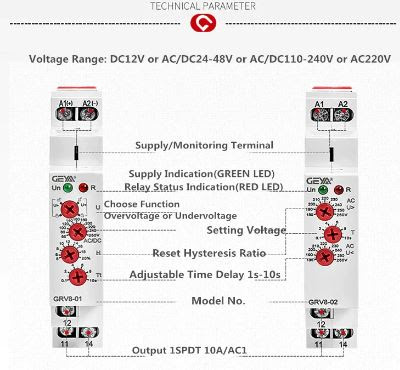

| Under voltage protection for Diesel Heater, Very nice solution, all credits goes to Steinar Solli |
https://www.aliexpress.com/item/1000007263379.html?fbclid=IwAR0yNmaeZYNU9M06LDqP8tdoPWJ25Numc0EX4UJquEEMxfoz9IFsWtwYDuY"I use this relay and set up to prevent draining the battery. The relay has a timer for how how many sec. the voltage can stay low before the relay operate. With the timer it is possible to start a vehicle without the relay shutting down the heater due to low voltage." - Steinar Solli"This is why i use this relay to only control the diesel pump as shown in the wire diagram. No risk of any damage on the heater. When the voltage drops below set voltage it stops the diesel pump and the heater has controlled stop with cool down sequence. It will give E04 but the fault will disapper next time you press start. If you want to test what happens, just disconnect the diesel pump connector when the heater is running." - Steinar Solli
 |
| 14x17cm diesel heater mounting plate |
 |
| MUFF FRESH Ø100MM, 40 kr FÄSTRAM FRESH 100, 50 kr |
"Hey i encounter this issue 3 Times, and I did some modifications. I found a bigger heatsink and adjusted a little bit to fit into the board. Since then no problem until now."- irimie nicolae
 |
| Dip stick / Stand pipe installation on 10l fuel tank. |
 |
| Photo of dip tube from S. Westerveld |
 |
| Diesel tank Installation of dip tube on top to prevent leakage. |
"Drill a small hole at the top of the tank and fit it . I siliconed mine down and is good as gold."- J. Abe"I was not happy having a hole in the bottom of a 10 ltr tank of diesel, I had to cut it down to size to fit the tank."- T. Hanrahan"I drilled a hole in the side near the top and fitted it there. The ones that go through the bottom often leak making the tank scrap. However it does mean you can't fill to the top."- E. Baker
 |
| Fuel filter installed and dip stick tube on top of thank. Possible because of diesel pump. |
"Here a yellow 5 gallon diesel tank with the included fuel feed tube. Use a fuel resistant adhesive and screws to secure the tube plate on top of the tank. Be sure to prime the system before starting the dry unlubricated pump. This will prevent premature wear on the pump."- J. Diffenderfer
 |
| Thanks for the photo J. Diffenderfer! |
 |
| Biltema boat tank mounted. |
"Glow plug x2 , fuel pump, 10 pack of glow plug screens.. glow plug wrench. Large and small gasket. That's all you need. Replace spares as they are consumed."T. Poustie
